UV Resistant Dot free PU LED Strip DC24V 15W/M With IP 68 Underwater project
Description:

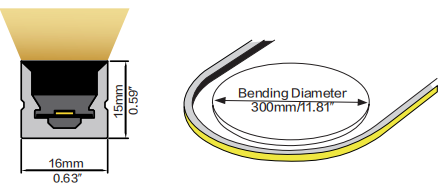

- LEDLINE FLEX TOP RGBW,DC24V. Cross section size 16mm x 15mm / 0.63" x 0.59" (Wx H), which is vertical bending with radius of 150mm/5.9".
- Thanks to full Polyurethane coating, it is IP68 protected, UV resistant, solvents resistant and saltwater temporary immersion.
- ONE BIN only and dot free lighting effect guarantee the most excellent performance for indoor & outdoor applications.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | LEDLINE FLEX TOP RGBW |
| Efficacy(lm/W) | 37 |
| Power(W/m W/ft) | 15/4.6 |
| LED Power | 15W/m |
| LED Color | RGBW |
| Input Voltage | DC24V |
| Neon Dimension | 16mm*15mm |
| Unit cut | 71.43mm |
| IP Grade | IP68 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 562LM/M(4000K) |
Download datasheet:LEDLINE FLEX TOP RGBW Datasheet.pdf
Notices:
- The product delivery length is 5M/reel maximum. Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the production process and the electrical components, values for light output and electrical power can vary up to 10%.
- The given color temperature is the strip (after coating) color temperature.
- The product can be cut ONCE only and finish with end cap & glue, then IP rating drops to IP67.
- Please make the cable connection out of water for underwater installation. It is 3 years warranty for underwater applications.
- Standard cable length is 30cm, if you need cable longer than 30cm, please use our extension connector with 1m or 5m cable.
- It is IK08 rated
Applications:
1. Brilliant colors and white light are in one productto compose impressive scenes to fit your special occasions.
2. Perfect for Ferris wheel, yacht, swimming pool, art galleries.
3. PC profile, aluminium profile and mounting clips are optional for installation.
